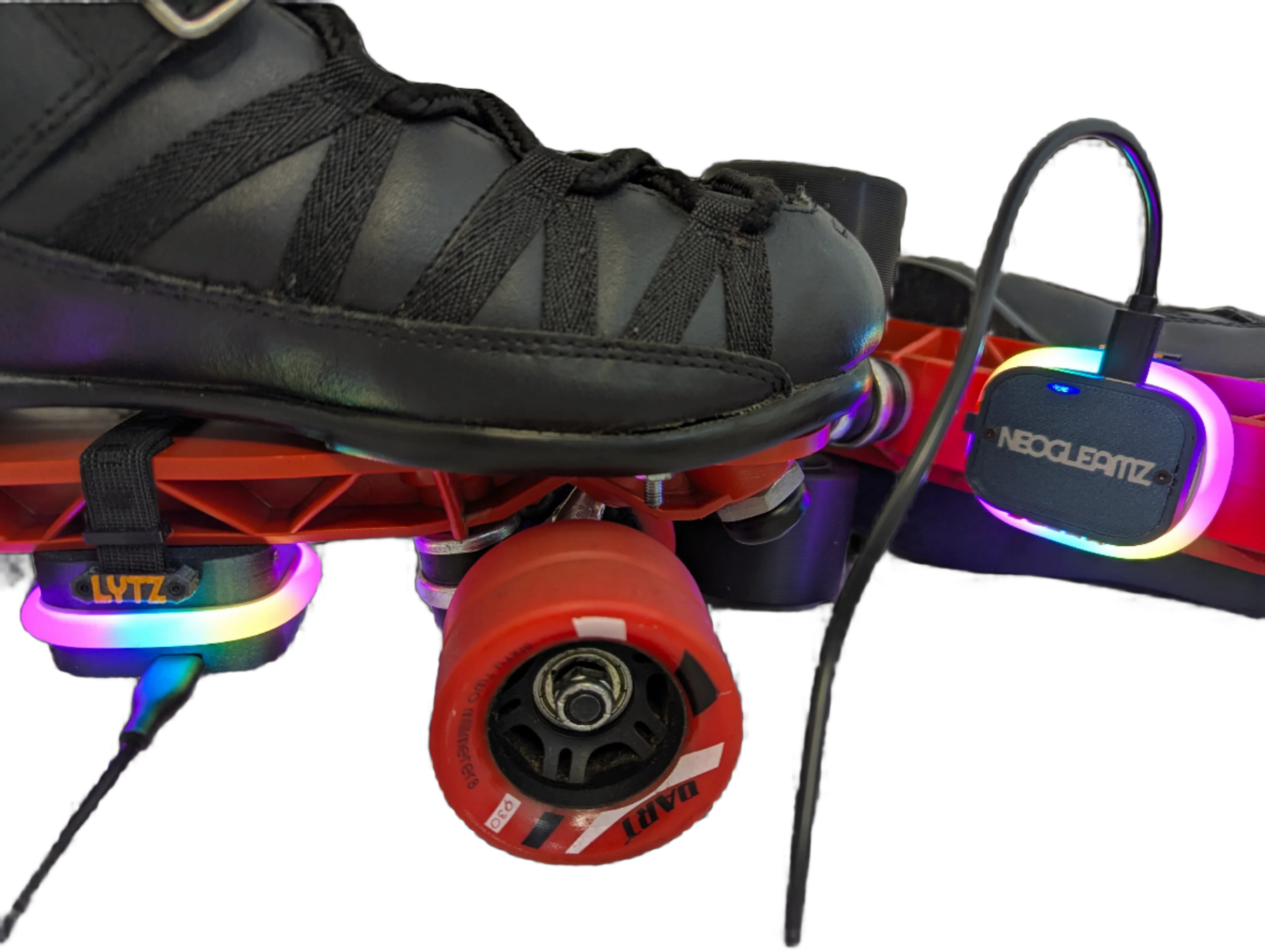

Charge & Power On SK8Lytz
Charge & Power On
 |

|
- Insert USB C Cables into SK8Lytz and wait for LEDS to power on
|
- Locate WHITE or ORANGE Power Button
|

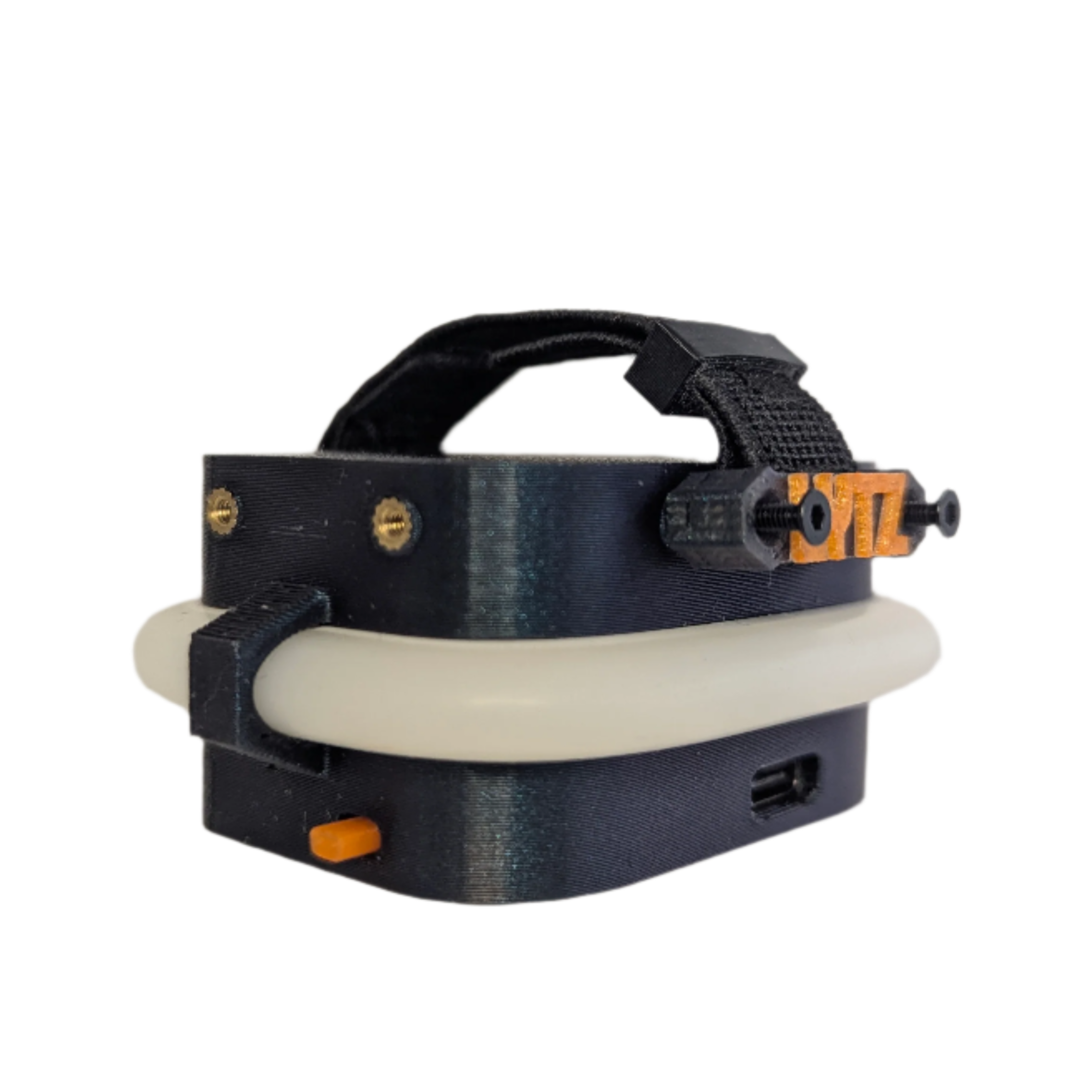

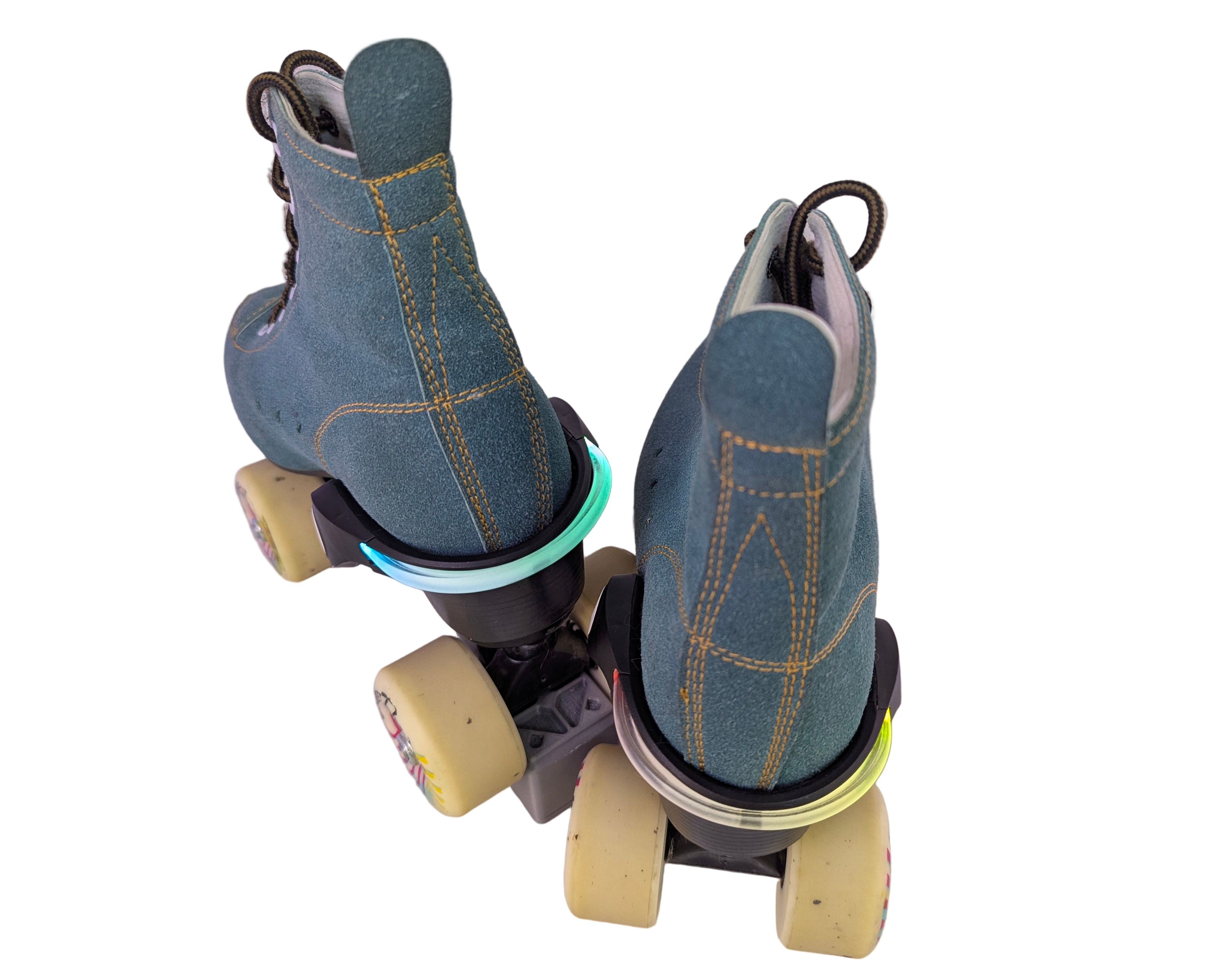

SK8Lytz HALOZ Installation Guide
Installation Guide
This installation guide is for demonstration purposes only! Skates and Skate brands have different boot and plate setups. That's why we've designed and included a custom elastic strap that can fit under most boot/plate combinations with minimal clearance
What's needed:
To Install SOULZ Units:
Allen Tool (H1.5 Included with Handle)
TIPS
AGGRESSIVE SKATERS - we strongly recommend using the double-sided tape to secure the SOULZ unit to your plate, along with the included elastic strap, to minimize movement and tighten up fitment
Safety Notice!
Prior to installation, make sure to thoroughly review the instructions for HALOZ and ensure proper mounting on your skates. Please note that proper usage is crucial for safety and any injuries resulting from improper use are not the responsibility of Neogleamz. Put safety first!
Step 1

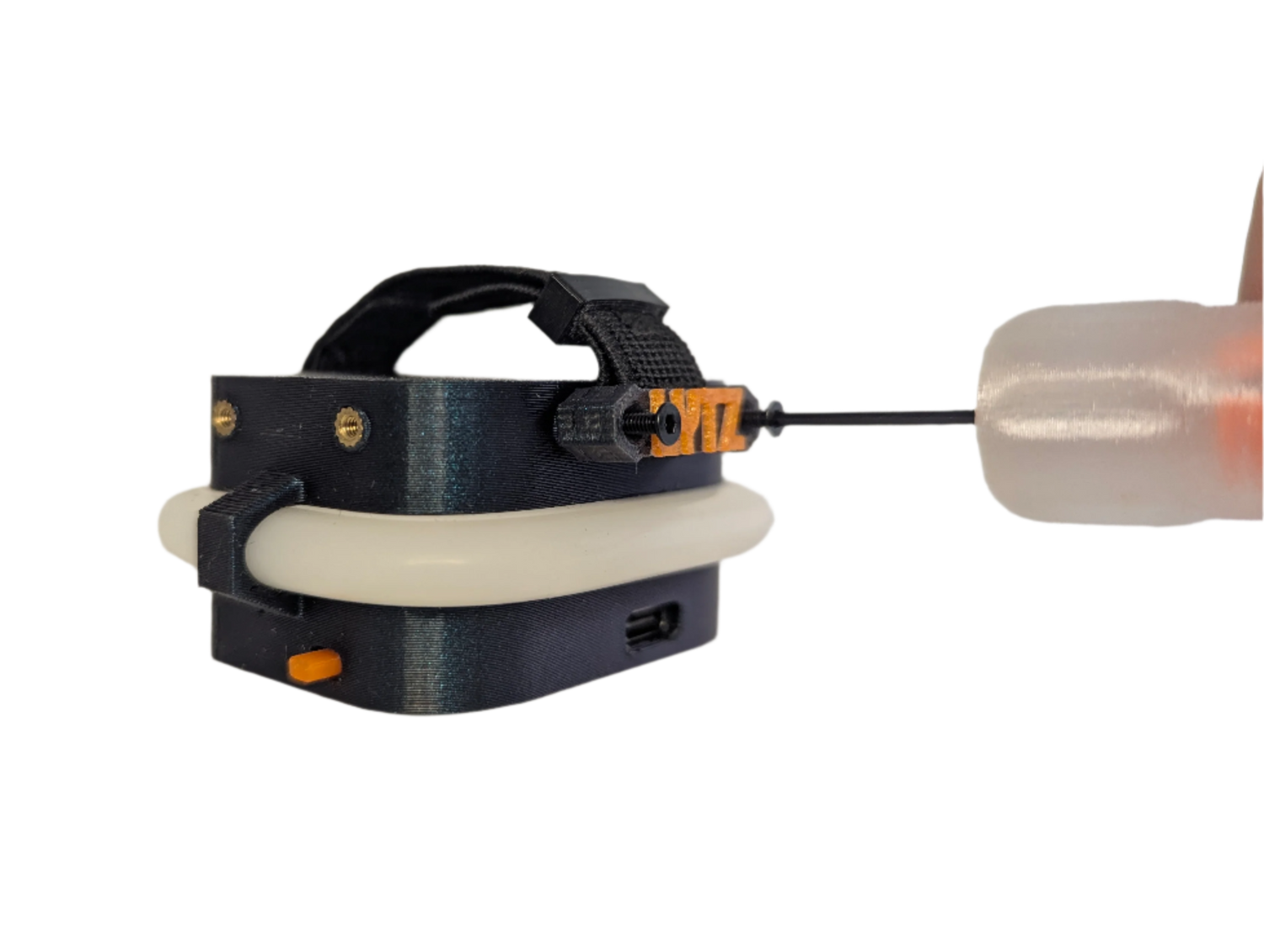

Unscrew Adjustable "LYTZ" Side of strap with included Allen tool |
|
|
|
|

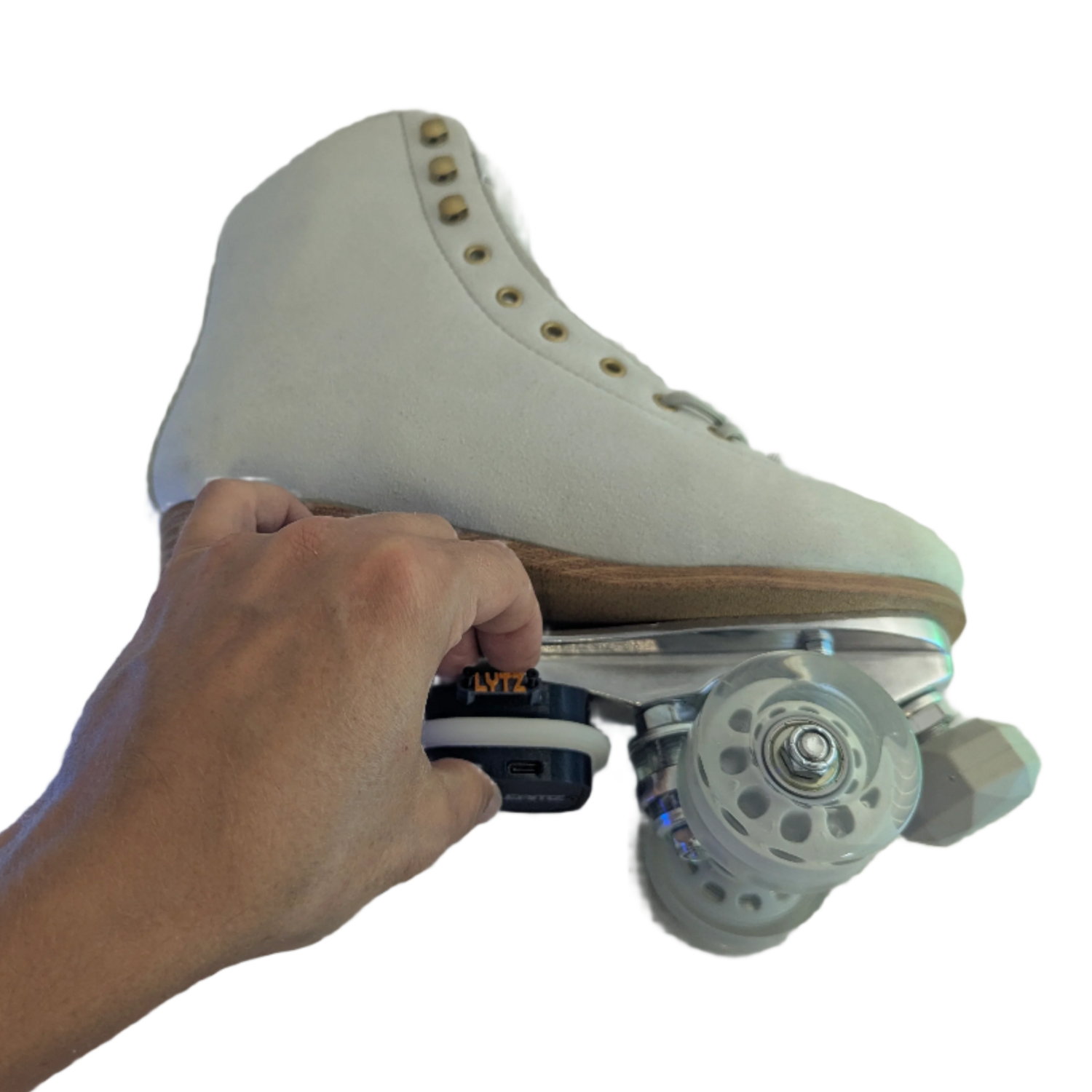

Step 2BOOTS WITH A HEEL GAP - Place Roller Skate on its side and slip adjustable "LYTZ" side of elastic clip through heel gapBOOTS WITHOUT A HEEL GAP - Disassemble adjustable "LYTZ" side of elastic strap and remove clip, loosen skate boot from plate, slide elastic band below boot, center and reassemble clip |
|
STEP 3

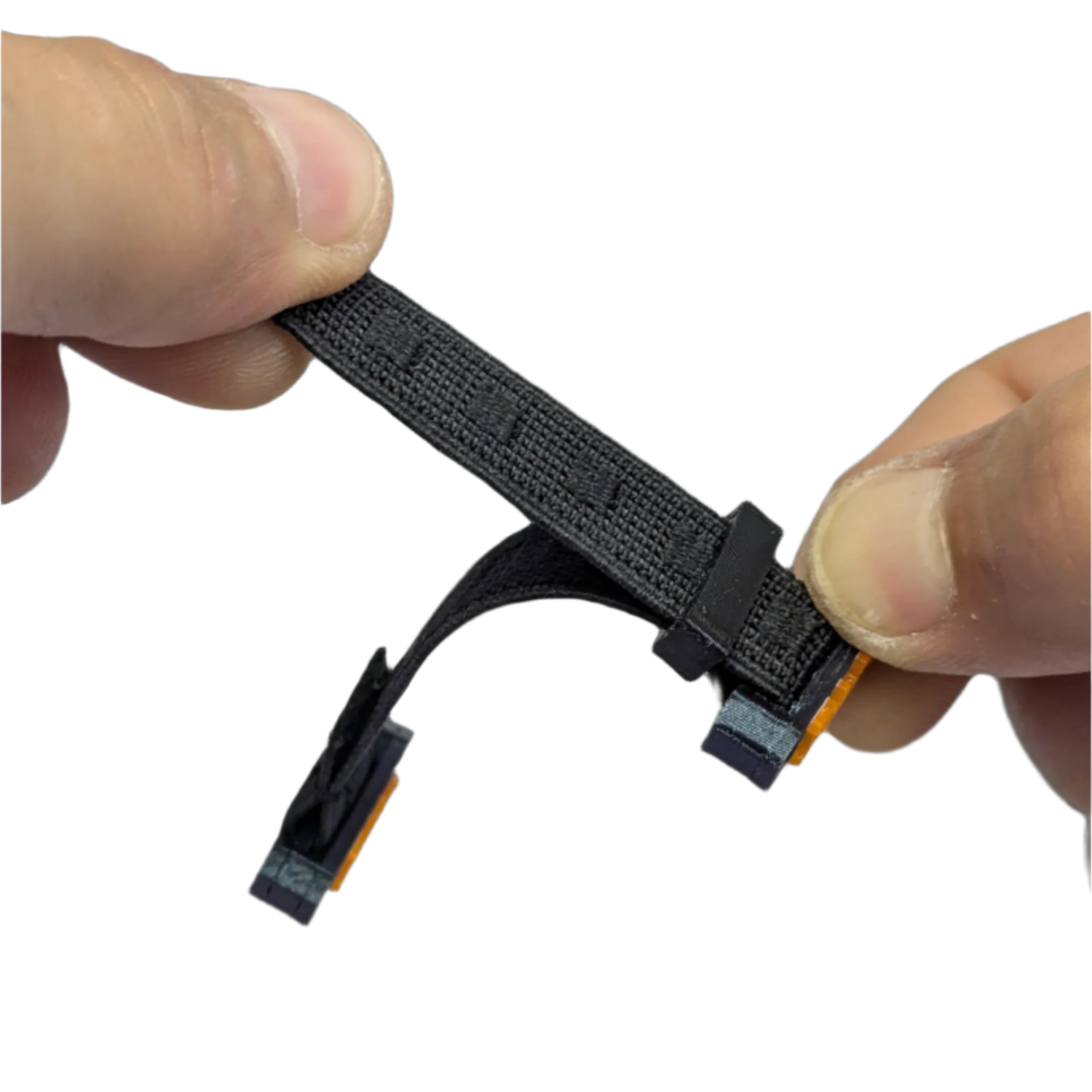

- Stretch Strap into position and evaluate tightness and fitment
- If Strap is too loose, tighten the strap and readjust the position of the strap band |
|

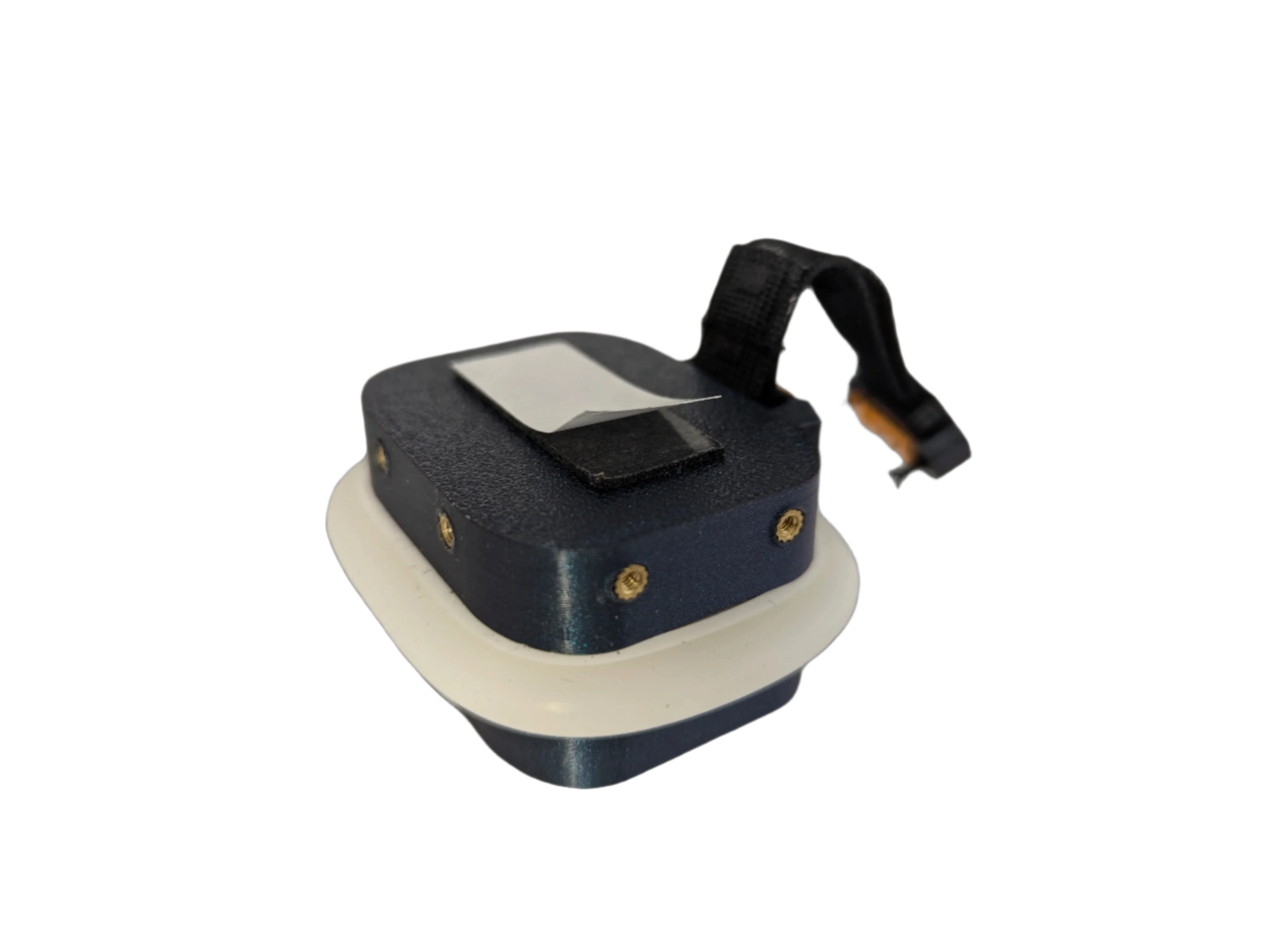

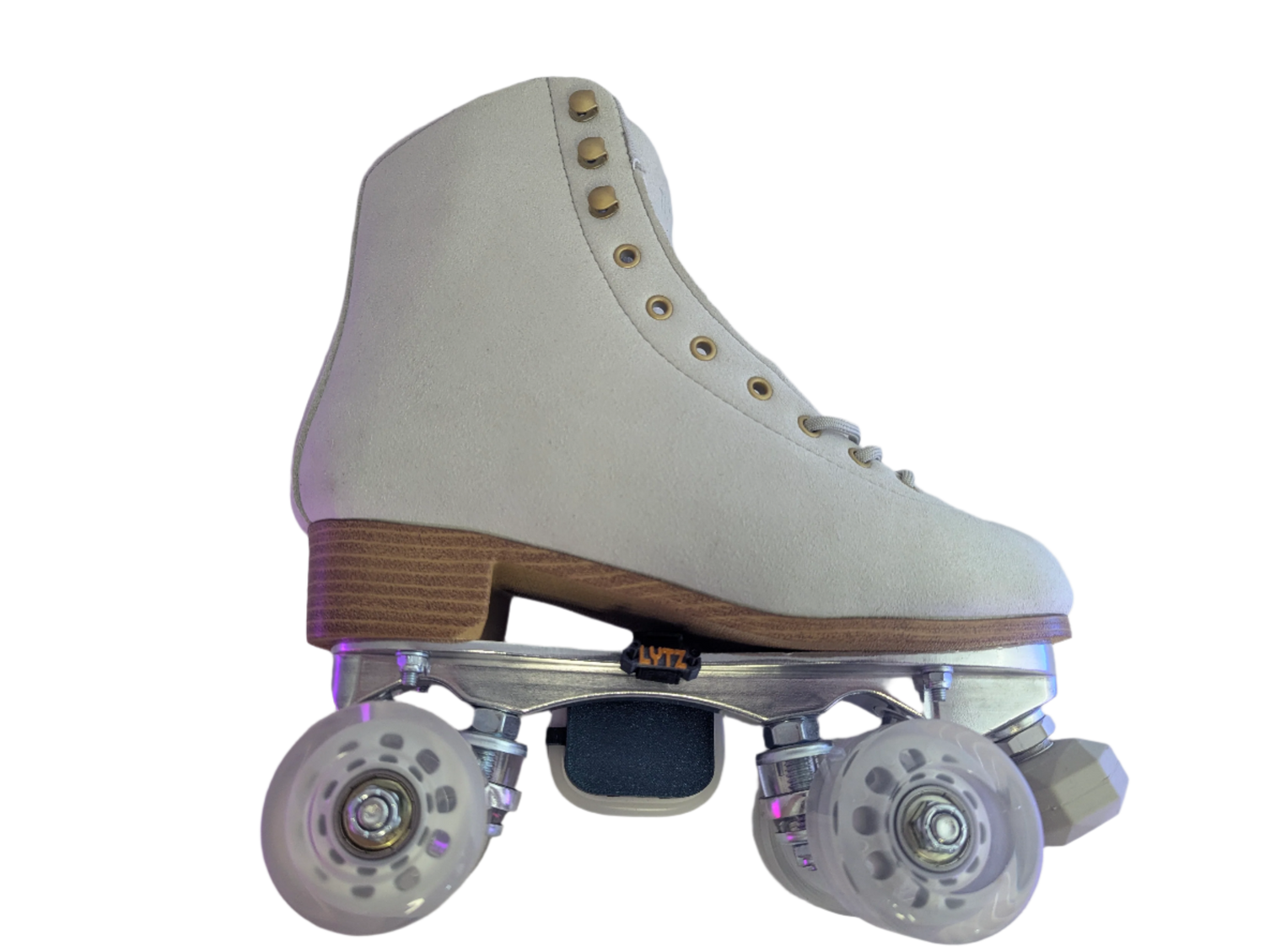

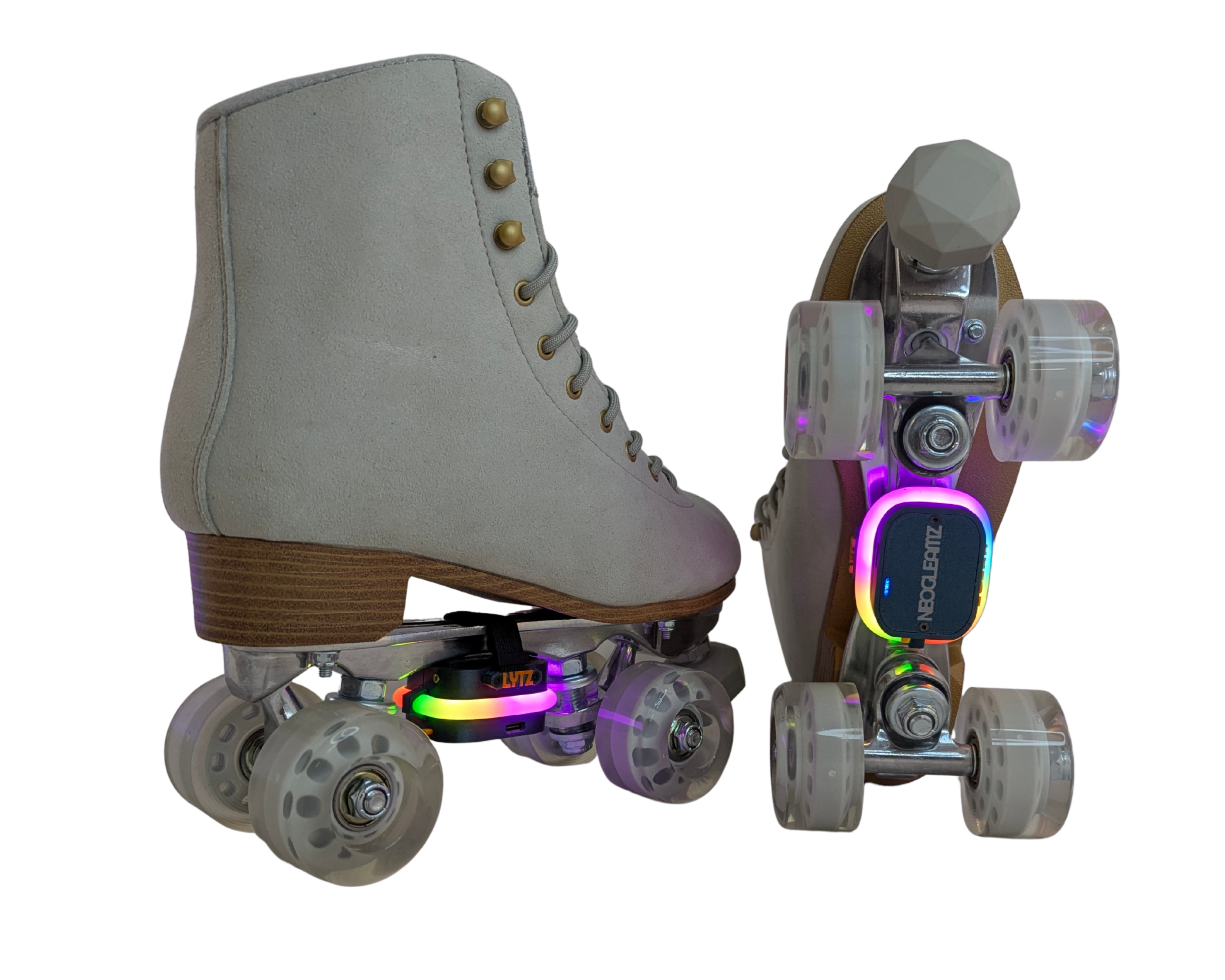

STEP 4- Peel and Stick Double-Sided tape and stick HALOZ unit onto Skate Plate

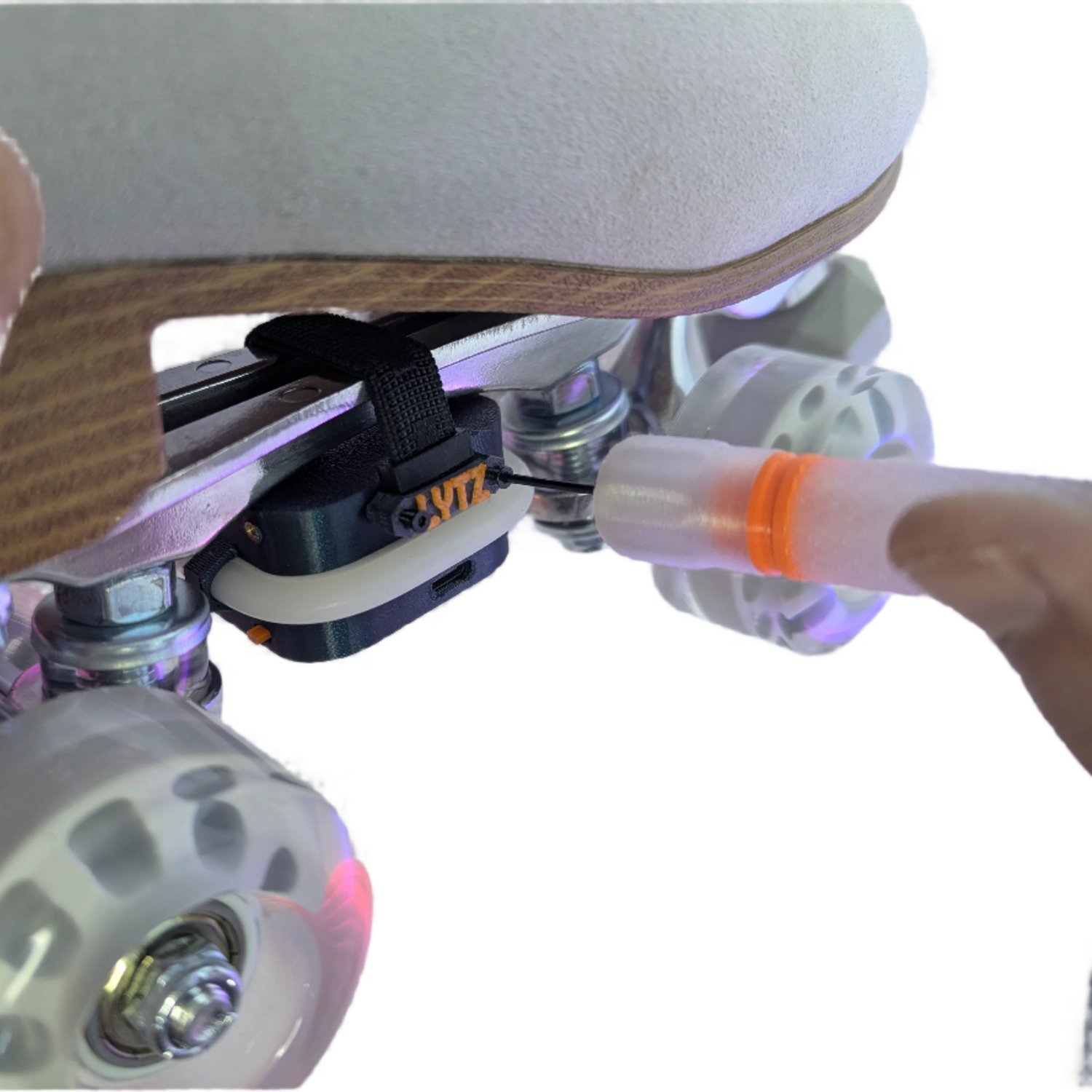

- Position the strap above screw holes and lightly tighten screws to secure
DO NOT OVERTIGHTEN |
|
REPEAT ON SECOND SKATE

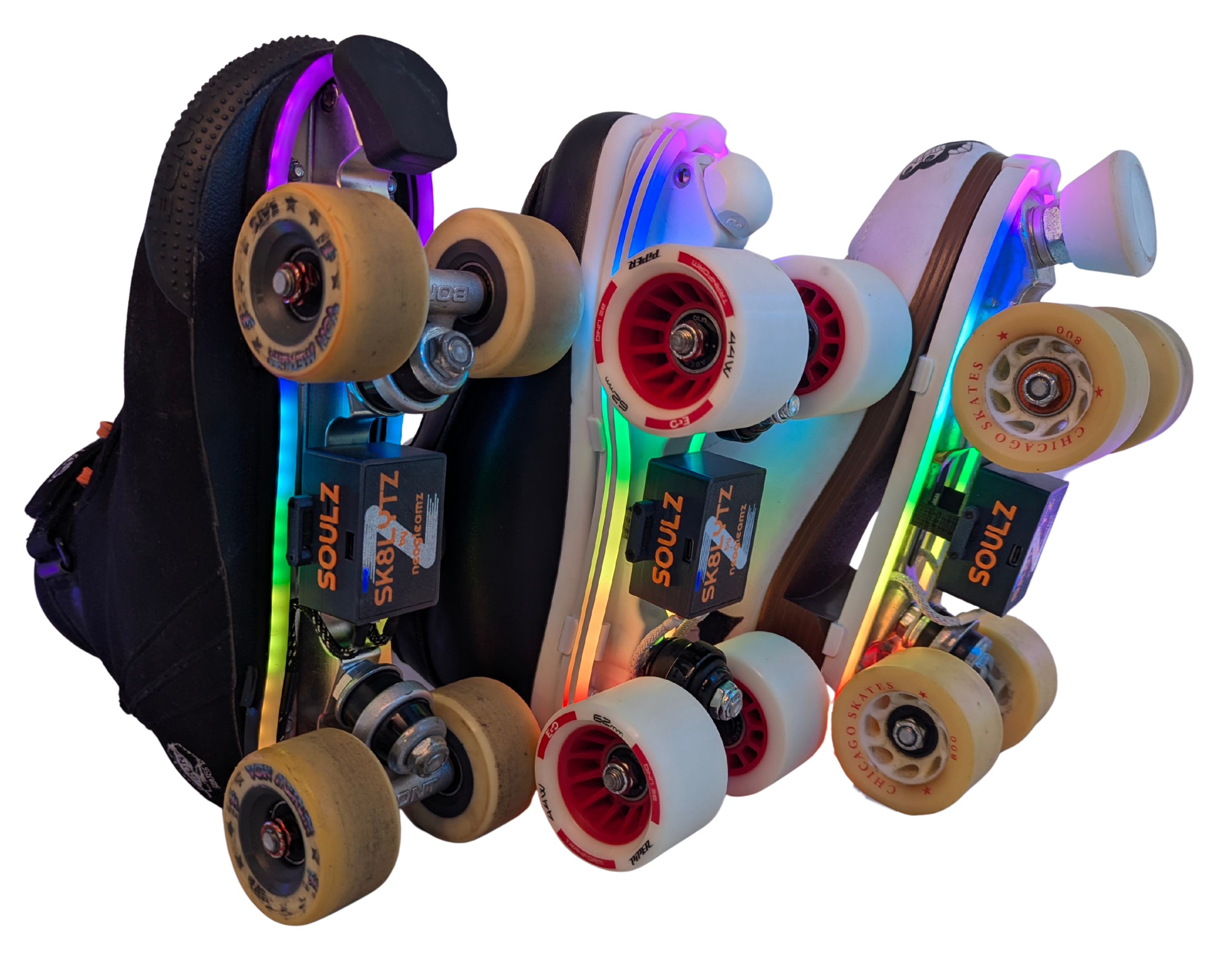

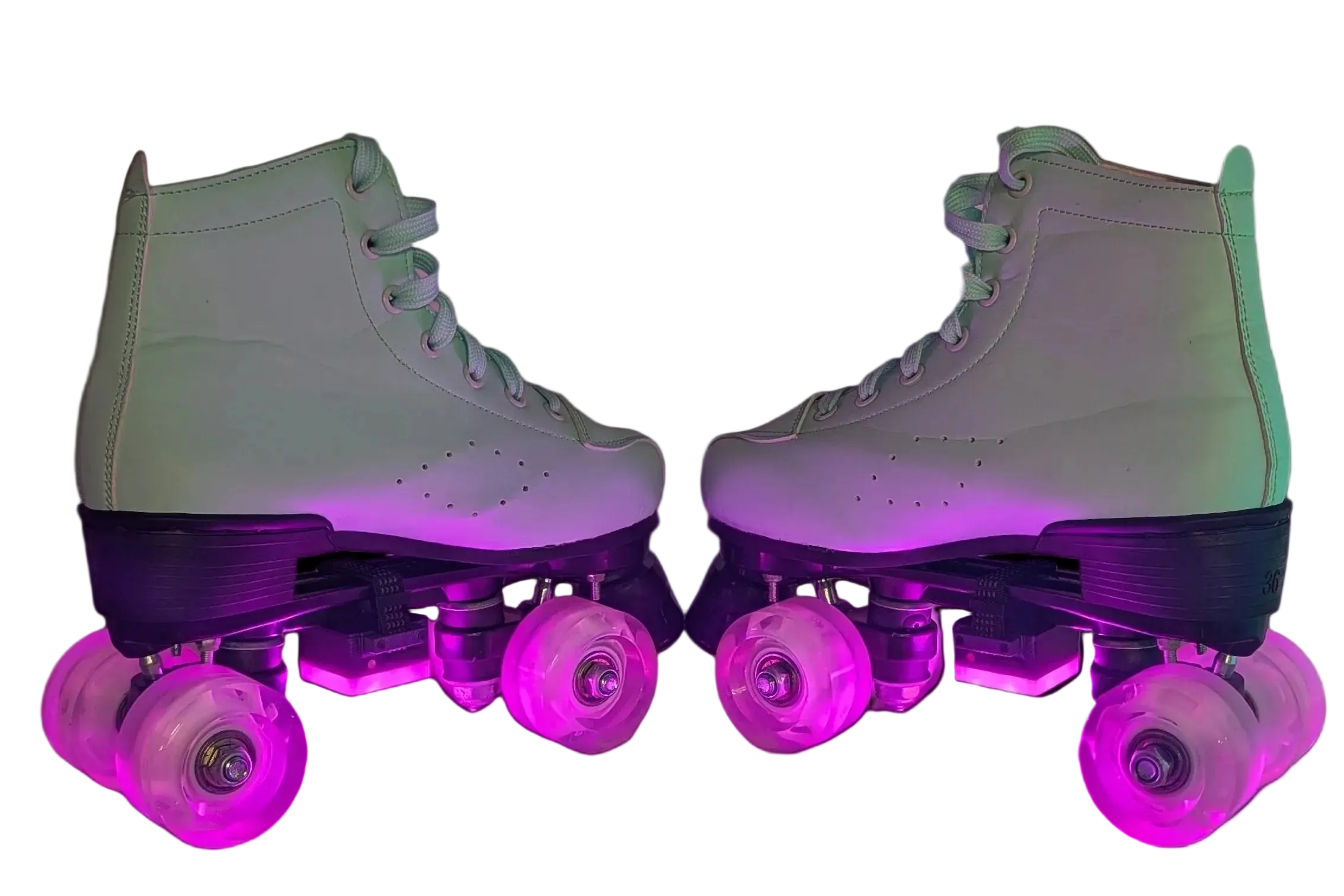

SK8Lytz SOULZ Installation Guide
Installation Guide
This installation guide is for demonstration purposes only! Skates and Skate brands feature varying boot and plate configurations. Thus, we've included over 24 custom designed clips of varying sizes to accommodate as many brands/options as possible. Consider experimenting with various clip sizes and orientation for ideal fitment with your specific skate brand.
What's needed to:
Install SOULZ Units:
Allen Tool (H1.5 Included with Handle)
Remove Wheels:
Skate Tool or 1/2 Socket Set
Loosen Plate/Boot Nuts:
5/16" Wrench or Socket (Preferable)
Cut LED Strips:
Sharp Scissors or Wire Snips
TIPS
DO NOT CUT LED STRIP SHORT - When cutting the LED Strip start longer and trim back multiple times to get to the desired shape and skate fitment
EXPERIMENT WITH ANGLES - The more you experiment with angles of the clips the tighter the product will contour to the shape of your specific skates and plates
AGGRESSIVE SKATERS - we strongly recommend using the double-sided tape to secure the SOULZ unit to your plate, along with the included elastic strap, to minimize movement and tighten up fitment
Safety Notice!
Prior to installation, make sure to thoroughly review the instructions for SOULZ and ensure proper mounting on your skates. Please note that proper usage is crucial for safety and any injuries resulting from improper use are not the responsibility of Neogleamz. Put safety first!
DOWNLOAD PRINTABLE PDF VERSION
Step 1
|
  |
Step 2
|
 |
 |
HIGHLY RECOMMENDED -
|
Step 3BOOTS WITH A HEEL GAP - Place Roller Skate on its side and slip adjustable side of elastic clip through heel gapBOOTS WITHOUT A HEEL GAP - Disassemble adjustable side of elastic strap and remove clip, loosen skate boot from plate, slide elastic band below boot, center and reassemble clip |
 |
Step 4- Stretch Strap into position and evaluate tightness and fitment- Strap must be very tight to prevent slipping- If Strap is too loose, pull to tighten and readjust the position of the strap band |
  |
Step 5- Peel and Stick Double-Sided tape and stick HALOZ unit onto Skate Plate- Position the strap above screw holes and lightly tighten screws to secure
- Afterward, hand tighten each screw until snug
|
 |
Step 6- Insert SOULZ LED Strip into the Rear Heel of Skate In between the Plate and Boot with wires facing down- Install X-Small Wire Clamp onto LED Strip usually 1/2" away from rear heel to hold wire- Install LED Strip Mounting Clip with Wire Clamp above rear wheels to shape the Silicone LED Strip around the contour of your plates- Partially tighten the rear plate nuts to hold clips tight in place (Socket Recommended)
|
  |
Step 7
- Install appropriate size LED Strip Mounting Clip above front wheels to shape the Silicone LED Strip around the contour/curve of your plates
|
 |
Step 8- Install LED Strip TOE Clip on front center of Skate boot |
 |
Step 9- Hold LED Strip Mounting Clips in place and tighten all plate/boot nuts |
 |
Step 10- Secure wire sleeving into all wire clamps |
  |
Step 11- Secure LED Strip into all LED Strip Mounting Clips |
  |
Step 12DO NOT CONNECT LED STRIP WIRES BEFORE CUTTINGDO NOT CUT SILICONE & LED STRIP TOO SHORT- Pull LED Strips around the front TOE Clips and mark them in the center- Cut Outer Silicone ONLY above mark (Do not cut LED Strip yet)- Cut LED Strip at Copper Pads- Insert Silicone and LED Strip into front TOE Clip- Inspect contour/shape and then cut Silicone back in small increments to achieve proper fitment (Fold LED strip inside Silicone if necessary)- Re-Insert LED Strip tightly into front Toe Clip
|
    |
Step 13- Connect both wires to SOULZ Unit ensuring they are secured and routed effectively through Wire Clamps
|
 |
Step 14- Before re-installing wheels inspect LED Strip and Mounting Clip fitment- Re-Install Wheels- Ensure nothing touches or rubs against anything prior to using Skates- If Necessary, readjust wire clamps, mounting clips, etc. to achieve optimal fitment |
  |
REPEAT ON SECOND SKATE
ZENGGE Android & iPhone APP Setup
ZENGGE Android & iPhone APP Setup
 Download |
 Download |
Name and Group Skates
- ENABLE Bluetooth
|
 |

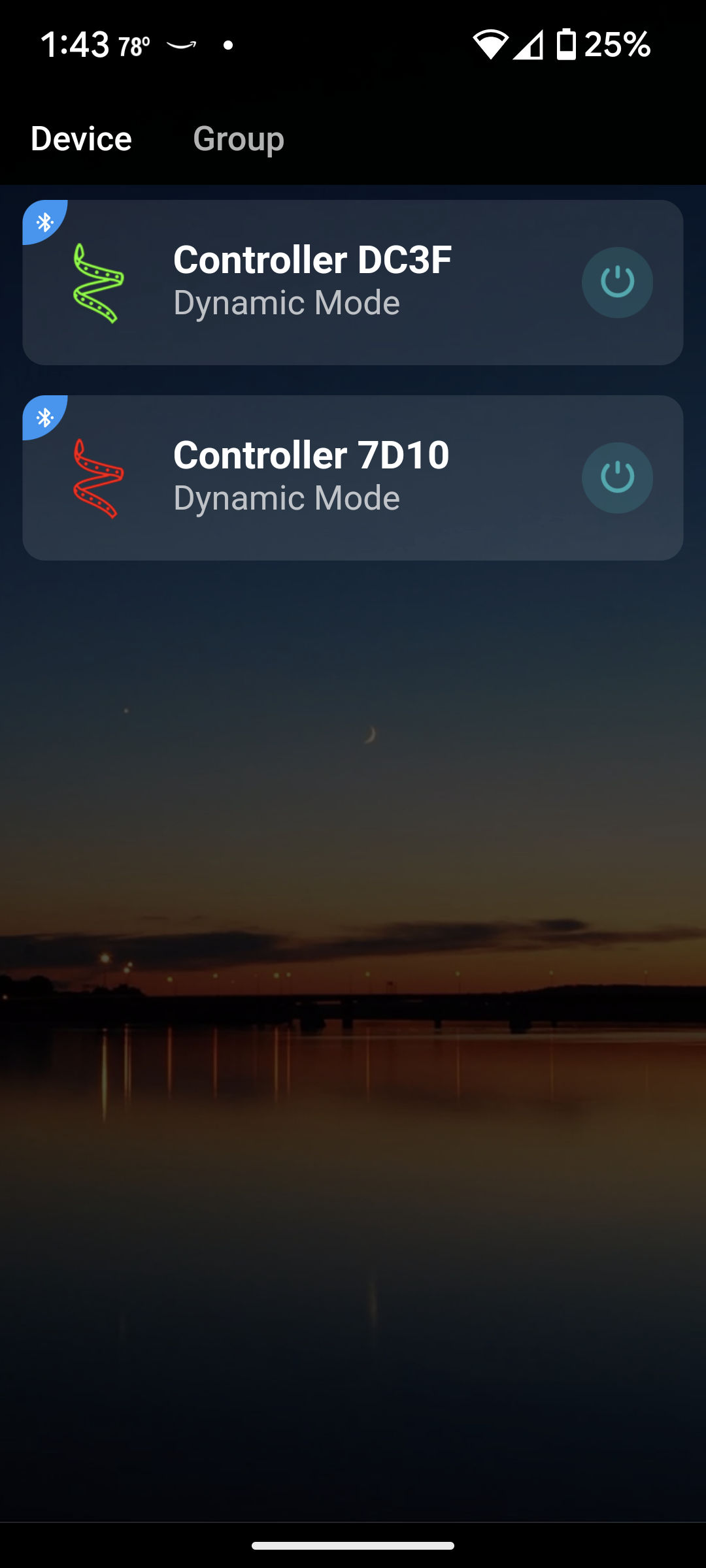

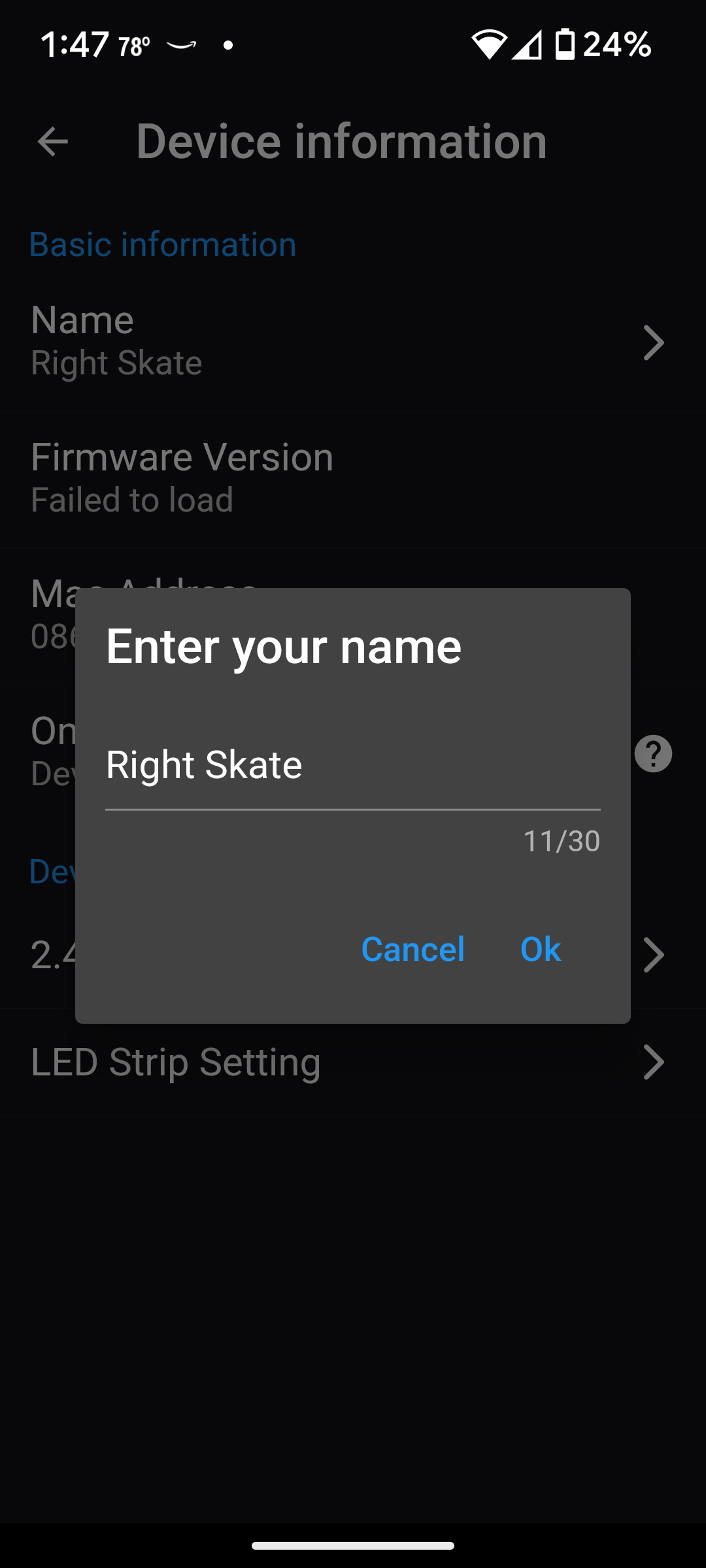

- LONG PRESS on each SK8Lytz controller and choose "Device information" |
 |
- NAME the SK8Lytz
|
 |

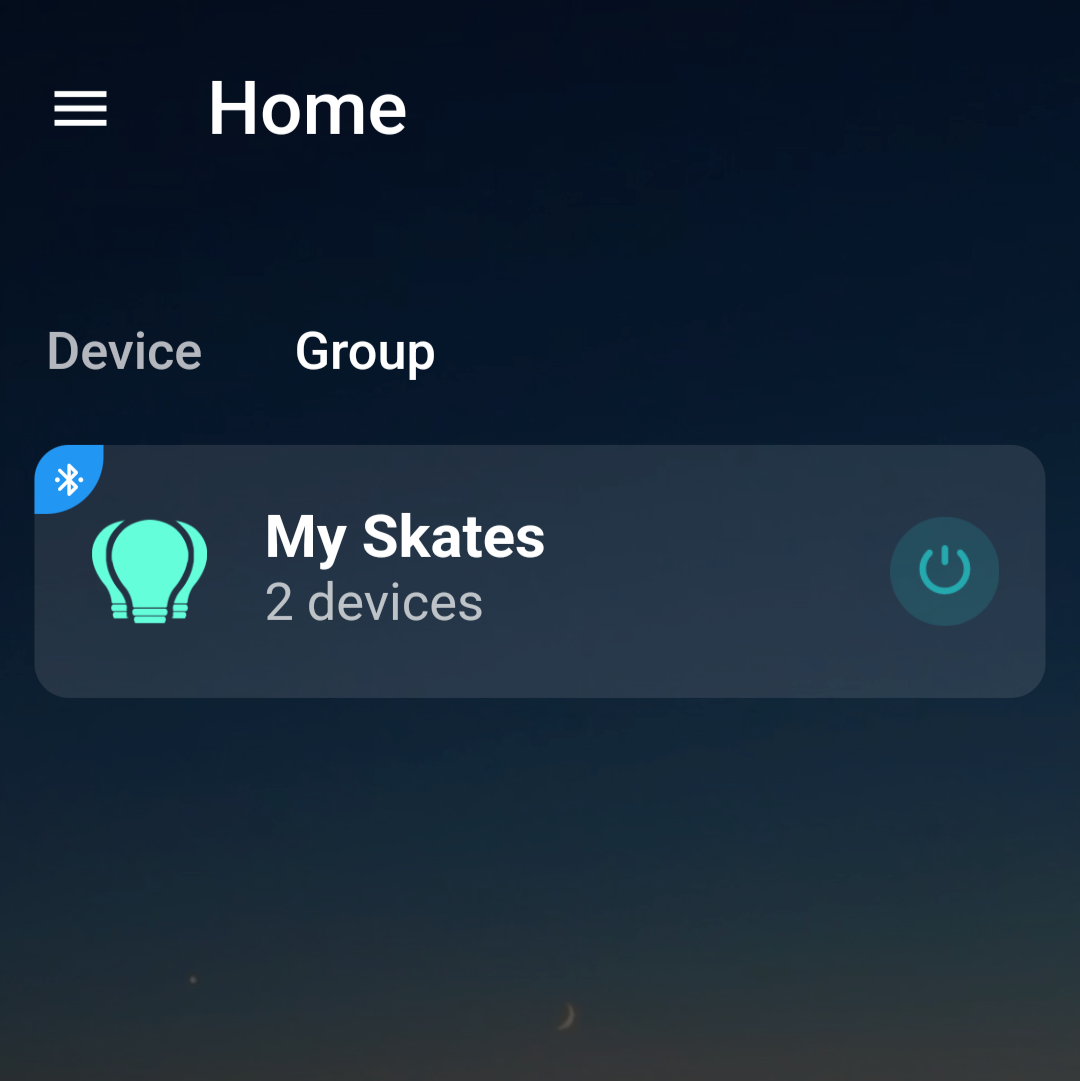

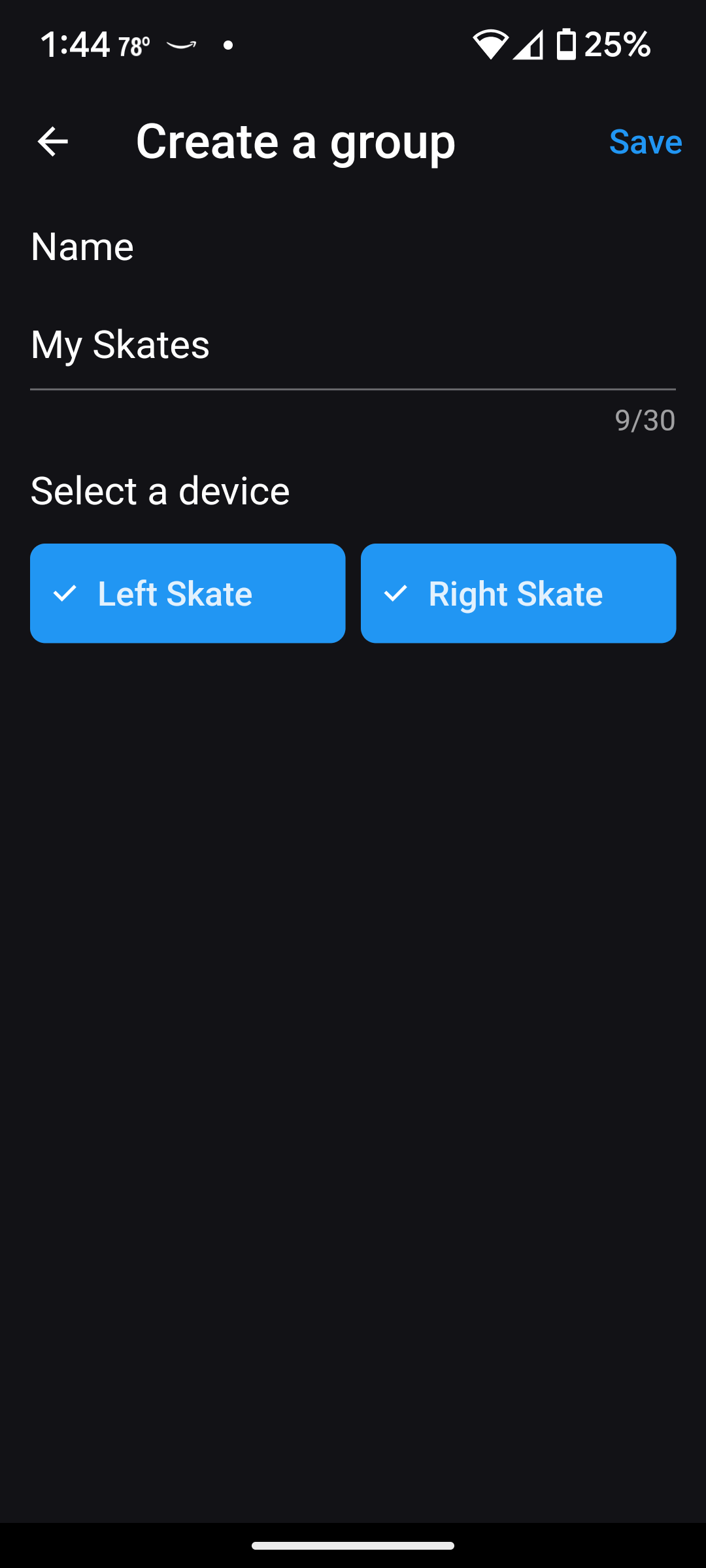

- LONG PRESS on one SK8Lytz LED controller and choose "Create a group"- NAME group "My Skates" and select Both newly named SK8Lytz and click SAVE |
 |
FOR SOULZ ONLY
- OPEN ZENGGE APP to discover SK8Lytz LED controllers- LONG PRESS on each SK8Lytz LED controller and choose "Device information"- Choose "LED Strip Setting"- The Full 14-inch LED Strip includes 40 LEDS so after you cut it you will need to change "Points" to the correct number of LEDS now in use. ie. 34 points. (Leave segments set to 1)- REPEAT on both Left and Right Sk8Lytz LED Controllers |
  |
Control your SK8Lytz
Control Your
with the
"ZENGGE" Android or iPhone App via Bluetooth
OR

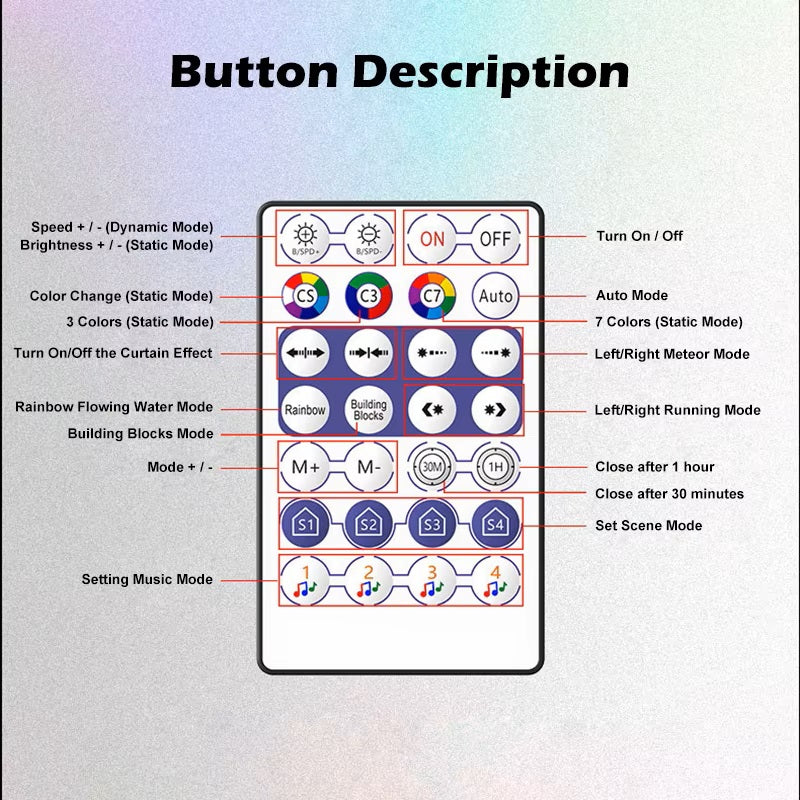

RF Remote Control
KEEP YOUR SK8Lytz IN SYNC - Always control your SK8Lytz with the "My Skates" group created during the ZENGGE APP setup

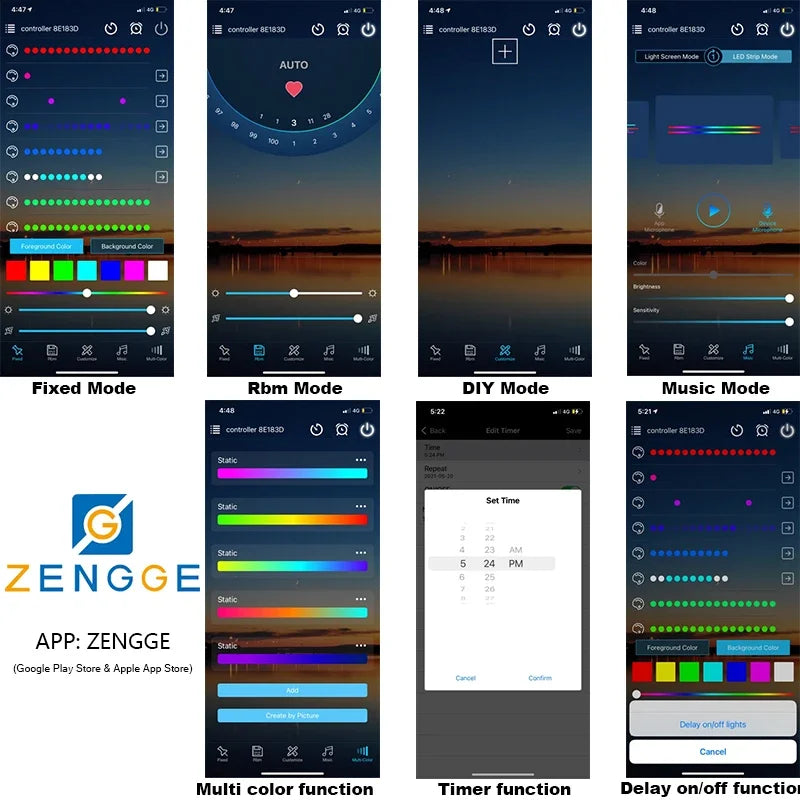

Mode Definitions
Fixed Mode
Transition among solid colors, with the ability to adjust brightness and speed across a wide variety of pattern styles
RBM Mode
Select from 100+ pre-programmed patterns like rainbow, chasing, and more
DIY Mode
Create your own effects and patterns
Music Mode
With the built-in microphones all SK8Lytz models have over 20+ preprogrammed modes which react to any type of music
Multicolor Mode
Multicolor mode with numerous strobe and flowing pattern effects
Camera Mode
Capture anything in a snap and watch your SK8Lytz mirror those colors. Ideal for coordinating with your outfit!
To Extend Battery Life of SK8Lytz
- Dim brightness of mode in use
- Use modes with less white light and active LEDs
- Use music, chasing or other sequential LED modes
